SKU: 872001

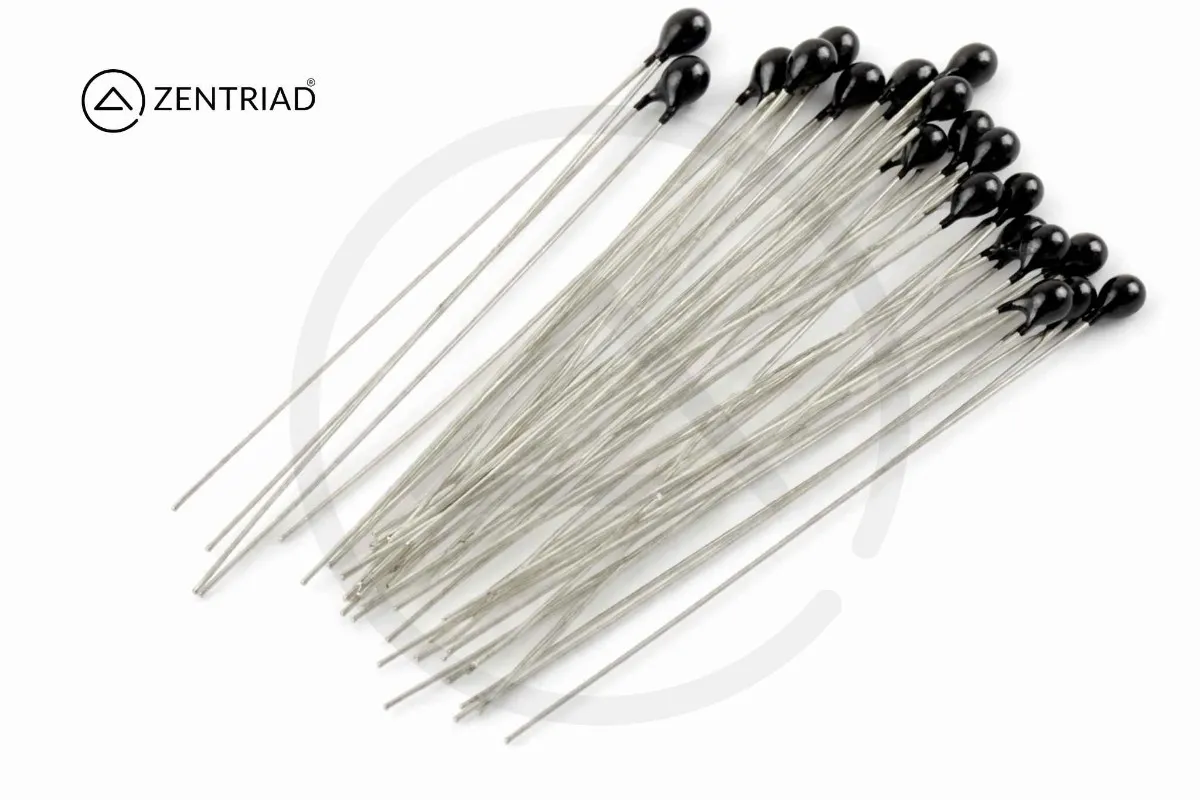

10K Bead Type NTC Thermistor
Bulk / B2B orders → info@zentriad.com
10K Ohm Bead Type NTC Thermistor — glass-encapsulated miniature bead for fast, accurate temperature sensing. The compact bead form factor minimises thermal mass, giving significantly faster response times than disc or epoxy types. True interchangeability across the operating range.
Key Features
Common Applications
| Manufacturer | Generic |
| Type | NTC Bead Type (Glass Encapsulated) |
| Temp Coefficient | NTC (Negative Temperature Coefficient) |
| Resistance at 25°C | 10kΩ |
| Tolerance | ±1% |
| B-Value (B25/85) | ~3435K (typical) |
| Thermal Time Constant | < 2 seconds (in still air) |
| Response Time (in liquid) | < 0.3 seconds |
| Operating Temperature | -55°C to +150°C |
| Bead Diameter | ~1.5 mm |
| Lead Length | 30 mm (tin-coated) |
| Weight | ~0.1 g each |
| Shipping Weight | 0.001 kg |
| Application | Compensation, Control, Measurement, Medical |
| Compliance | RoHS Compliant (Lead Free) |
| Country of Origin | india |
| SKU | 872001 |
Not sure whether you need bead type or disc/epoxy type? Here's a quick comparison to help you choose the right thermistor for your project.
| Feature | 🔵 Bead Type (This) | ⚫ Disc / Epoxy Type |
|---|---|---|
| Thermal Response | ⚡ Very Fast (<2s) | Moderate (~10s) |
| Size | ✔ Very Compact (~1.5mm) | Larger (~2–4mm) |
| Temperature Range | -55°C to +150°C | -80°C to +150°C |
| Chemical Resistance | ✔ Excellent (glass) | Moderate (epoxy) |
| Immersion in Liquids | ✔ Suitable | ⚠ Not recommended |
| Ruggedness | Fragile (glass) | ✔ More robust |
| Medical Use | ✔ Common | Less common |
| Arduino Compatible | ✔ Yes | ✔ Yes |
| Best For | Precision, IoT, medical, liquid sensing | General purpose, outdoor, rugged |
Zentriad Sales Offices
Strategic locations to power global innovation.
About the 10K Bead Type NTC Thermistor
The 10K bead type NTC thermistor is a miniature glass-encapsulated temperature sensor with a nominal resistance of 10,000 ohms at 25°C. The term "bead type" refers to the small glass bead that encapsulates the sensing element — unlike disc or epoxy types, the glass bead construction gives faster thermal response, superior chemical resistance, and suitability for direct liquid immersion.
Why Choose a 10K Bead Type Thermistor?
The 10K bead thermistor is preferred in applications requiring fast, accurate temperature readings in a compact footprint. Its glass encapsulation protects the sensing element from moisture and chemicals, making it ideal for liquid temperature sensing, medical devices, and precision instrumentation.
- Faster thermal response than disc / epoxy NTC thermistors
- Compatible with standard 10K NTC lookup tables and Steinhart-Hart equations
- Directly usable with Arduino, ESP32, Raspberry Pi via voltage divider
- Interchangeable with other 10K NTC thermistors in most circuits
How to Use a 10K Bead Type NTC Thermistor with Arduino
Connect the bead type thermistor in series with a 10K resistor between VCC and GND. Read the midpoint voltage on an analog pin. Convert using the Steinhart-Hart equation or the Beta equation with B=3435, R0=10000, T0=298.15K. Many Arduino libraries support this directly.
